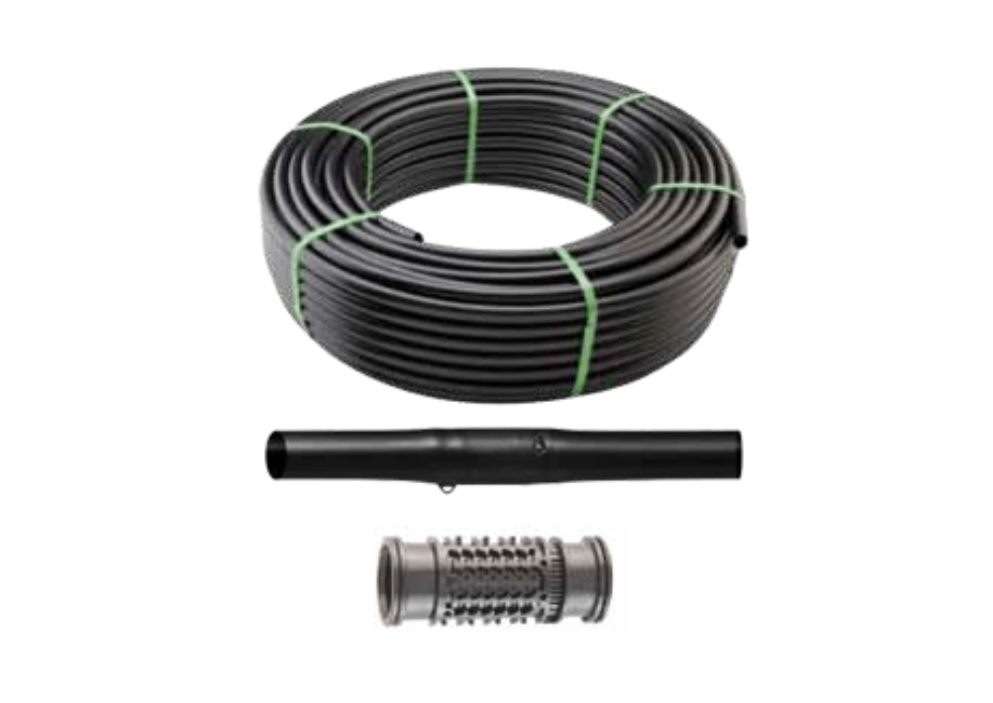

HYDROGOL

Size	Discharge	Thickness	Dripper Spacing	Class
12mm	2/4 Lph	0.5mm, 0.7mm	30cm To 120cm	Class 2 / class 3
16mm	2/4 Lph	0.6mm, 0.8mm	30cm To 120cm	Class 2 / class 3
20mm	2/4 Lph	0.8mm	30cm To 120cm	Class 1 Class2

FLAT DRIP

Size	Discharge	Thickness	Dripper Spacing	Class
12mm	2/4 Lph	0.8mm 0.12mm	30cm To 120cm	Class 2 / class 3
16mm	2/4 Lph	0.2mm, 0.25mm, 0.3mm , 0.4 mm, 0.6mm, 0.8mm	30cm To 120cm	Class 2 / class 3
20mm	2/4 Lph	0.8mm	30cm To 120cm	Class 1 Class2

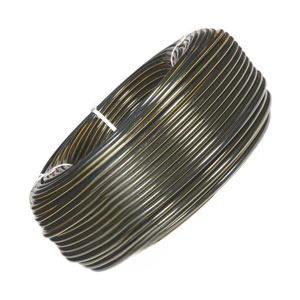

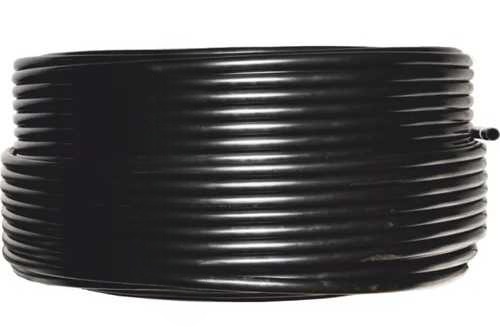

PLAIN LATERAL

Size	Discharge	Thickness	Dripper Spacing	Class
12mm	-	1.1mm	-	Class 2
16mm	-	1.2mm	-	Class 2
20mm	-	1.1mm	-	Class 1 / Class 2
25mm	-	2.0mm	-	Class 1 / Class 2
32mm	-	2.2mm	-	Class 2

DRIPPERS

Discharge	-	-	-	Class
4 LPH	-	-	-	B
8 LPH	-	-	-	B
14 LPH	-	-	-	B

FILTER SCREEN METAL (ALSO AVAILABLE IN PLASTIC BODY)

Inlet / Outlet	Max. Working Pressure	Range Of Flow	Filteration Surface Area
2”	8kg/cm2	20m3/hr	492 Cm2
2.5”	8kg/cm2	30m3/hr	-
3”	8kg/cm2	40m3/hr	1193 Cm2

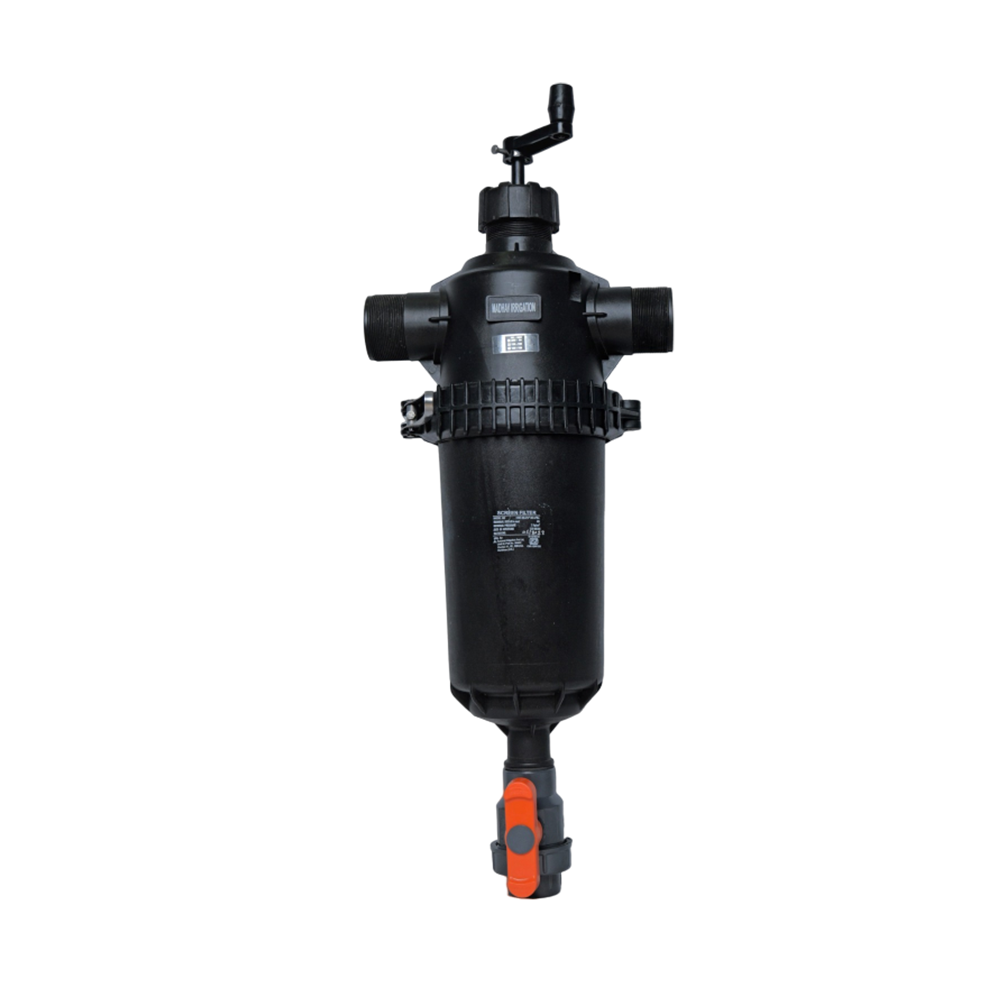

Semi Automatic Filter

Inlet / Outlet	Max. Working Pressure	Range Of Flow	Filteration Surface Area
2”	8kg/cm2	20m3/hr	878 Cm2
2.5”	8kg/cm2	30m3/hr	878 Cm2
3”	8kg/cm2	40m3/hr	1193 Cm2

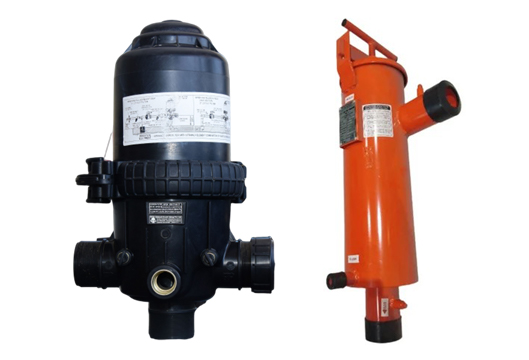

SAND SEPRATOR / FILTER

Inlet / Outlet	Range Of Flow	-	-	-
2”	20m3/hr	-	-	-
2.5”	30m3/hr	-	-	-
3”	50m3/hr	-	-	-

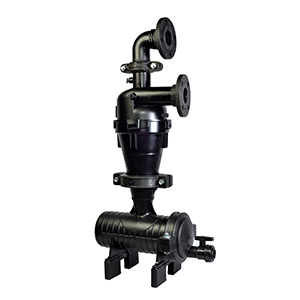

HYDROCYCLONE FILTER

Inlet / Outlet	Range Of Flow	-	-	-
2”	20m3/hr	-	-	-
2.5”	30m3/hr	-	-	-
3”	50m3/hr	-	-	-

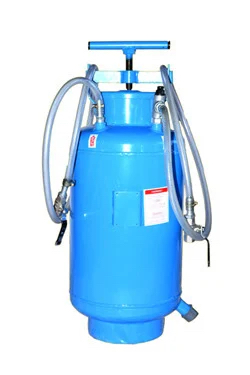

FERTILIZER TANK

Capacity	-	-	-	-
30 Ltr	-	-	-	-
60 Ltr	-	-	-	-
90 Ltr	-	-	-	-
120 Ltr	-	-	-	-

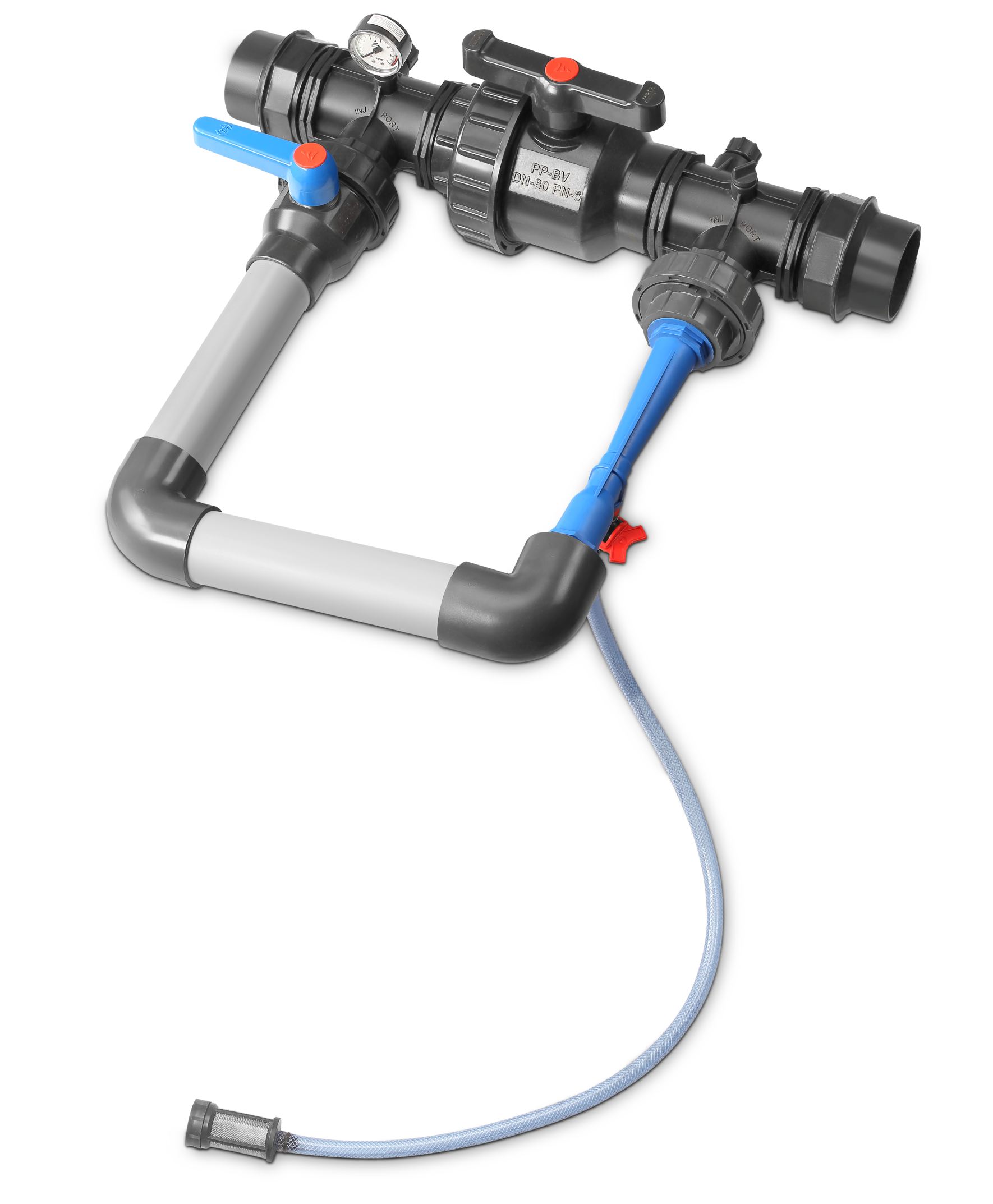

VENTURY INJECTOR REGULER & MANIFOLD

Size	Inlet Pressure	Motive Flow L/h	Water Suction L/h	-
¾”	2	1355	111	-
1”	2	4290	219	-
1.5”	2	6590	650	-
2”	2	6590	670	-

SINGLE UNION PVC BALL VALVES

Plain Lateral/Inline - ACCESSORIES

Size	-	-
12mm : Take off Connector, End Cap, Joiner, Rubber Gromate, Lateral Cock	-	-
16mm : Take off Connector, End Cap, Joiner, Rubber Gromate, Lateral Cock	-	-
20mm : Take off Connector, End Cap, Joiner, Rubber Gromate, Lateral Cock	-	-
